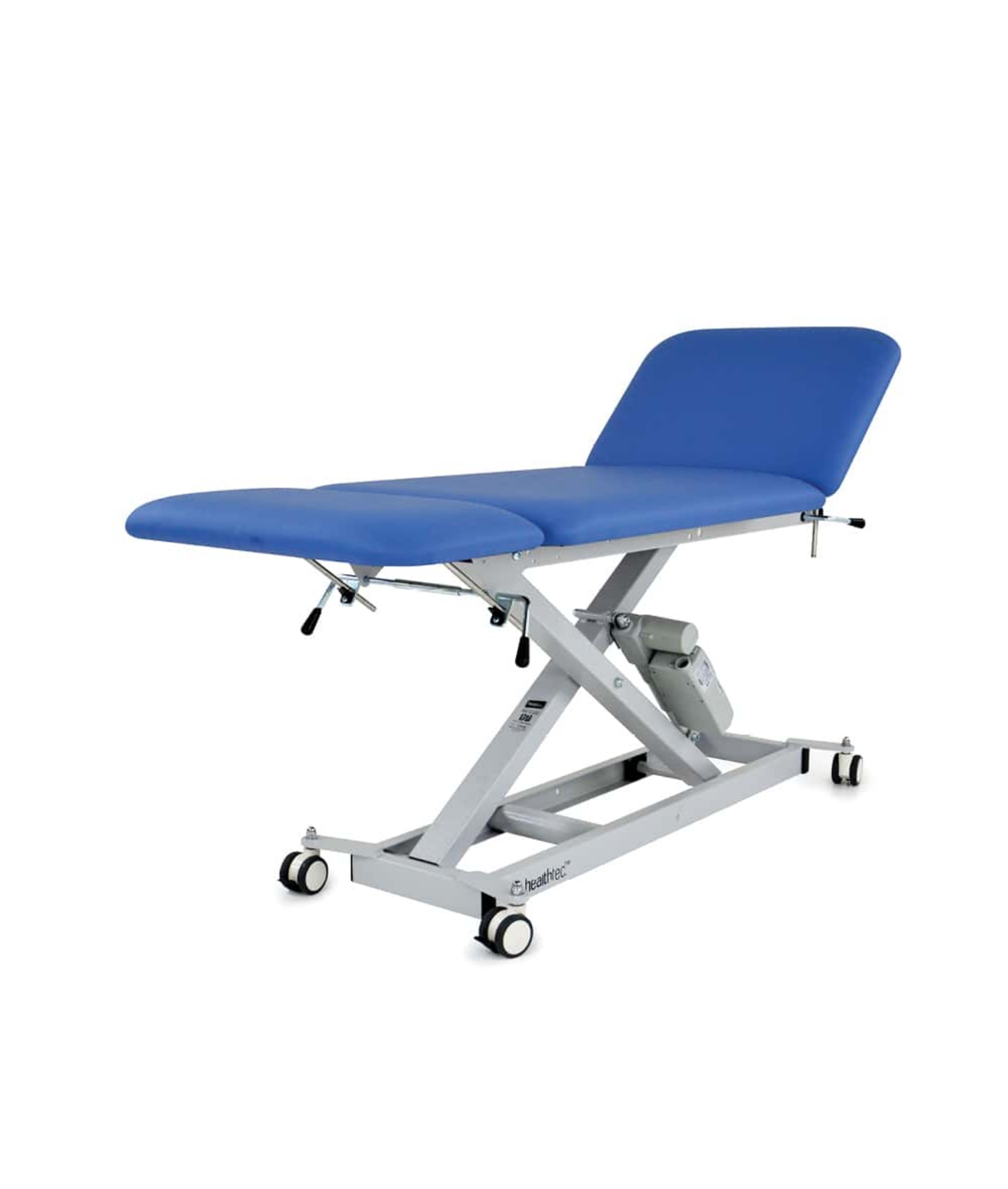

LynX Ultrasound Examination Table

Designed for the Ultrasound Imaging and Diagnostic Clinics this table provides a comfortable working environment for both the Sonographer and patient.

The small footprint and scissor lift design means it can be used in even the smallest of ultrasound rooms. The backrest can be manually adjusted from flat to +70º while the footrest can be manually adjusted from flat to +30º/-90º for perfect patient positioning.

Clear
Add To Quote
SKU: N/A Category:

[vc_row type=”full_width_background” full_screen_row_position=”middle” column_margin=”default” column_direction=”default” column_direction_tablet=”default” column_direction_phone=”default” bg_color=”#ffffff” scene_position=”center” top_padding=”5%” text_color=”dark” text_align=”left” row_border_radius=”none” row_border_radius_applies=”bg” overflow=”visible” id=”accessories” overlay_strength=”0.3″ gradient_direction=”left_to_right” shape_divider_position=”bottom” bg_image_animation=”none” gradient_type=”default” shape_type=””][vc_column column_padding=”no-extra-padding” column_padding_tablet=”inherit” column_padding_phone=”inherit” column_padding_position=”all” column_element_direction_desktop=”default” column_element_spacing=”default” desktop_text_alignment=”default” tablet_text_alignment=”default” phone_text_alignment=”default” background_color_opacity=”1″ background_hover_color_opacity=”1″ column_backdrop_filter=”none” column_shadow=”none” column_border_radius=”none” column_link_target=”_self” column_position=”default” gradient_direction=”left_to_right” overlay_strength=”0.3″ width=”1/2″ tablet_width_inherit=”default” animation_type=”default” bg_image_animation=”none” border_type=”simple” column_border_width=”none” column_border_style=”solid”][vc_column_text]

Features

  • Electric Height Adjustment with Foot Switch
  • X-Frame Lift Action Minimises Pinch and Crush Points
  • Heavy Duty Individually Lockable Castors
  • Durable Powder Coated Rust Resistant Frame
  • High Quality Anti-microbial Vinyl and CFC Free Foam
  • Australian Designed and Manufactured
  • Warranty (Parts Only) – 10 Year Structural on base and frame – 5 Year Electrical – 3 Year Upholstery

[/vc_column_text][/vc_column][vc_column column_padding=”no-extra-padding” column_padding_tablet=”inherit” column_padding_phone=”inherit” column_padding_position=”all” column_element_direction_desktop=”default” column_element_spacing=”default” desktop_text_alignment=”default” tablet_text_alignment=”default” phone_text_alignment=”default” background_color_opacity=”1″ background_hover_color_opacity=”1″ column_backdrop_filter=”none” column_shadow=”none” column_border_radius=”none” column_link_target=”_self” column_position=”default” gradient_direction=”left_to_right” overlay_strength=”0.3″ width=”1/2″ tablet_width_inherit=”default” animation_type=”default” bg_image_animation=”none” border_type=”simple” column_border_width=”none” column_border_style=”solid”][vc_column_text]

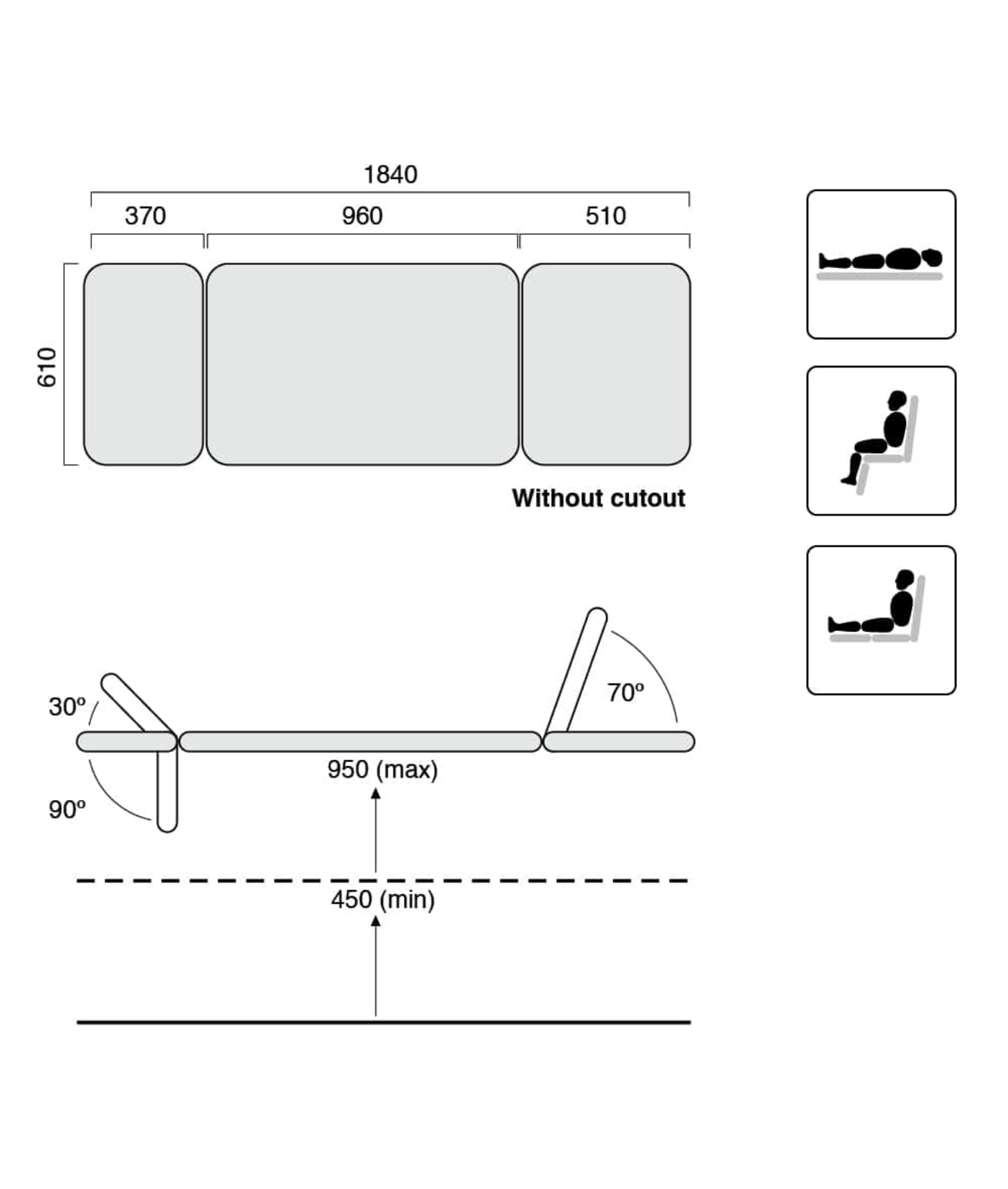

Product Information/Specifications

  • Maximum Working Load: 400kg (Stationary)
  • Maximum Lifting Capacity: 250kg (Moving)
  • Minimum Working Height: 450mm
  • Maximum Working Height:  950mm
  • Table Width: 610mm Standard (Optional 660mm, 710mm, 760mm or Custom)
  • Table Length: 1840mm
  • Cushioning: 50mm Foam
  • Controller: Foot Switch
  • Base/Castor: LynX X-Frame with Castors
  • Back Rest: Manual Adjustment +70º
  • Head Section: Manual Adjustment +30º down to -90º

[/vc_column_text][/vc_column][/vc_row][vc_row type=”in_container” full_screen_row_position=”middle” column_margin=”default” column_direction=”default” column_direction_tablet=”default” column_direction_phone=”default” scene_position=”center” text_color=”dark” text_align=”left” row_border_radius=”none” row_border_radius_applies=”bg” overflow=”visible” overlay_strength=”0.3″ gradient_direction=”left_to_right” shape_divider_position=”bottom” bg_image_animation=”none”][vc_column column_padding=”no-extra-padding” column_padding_tablet=”inherit” column_padding_phone=”inherit” column_padding_position=”all” column_element_direction_desktop=”default” column_element_spacing=”default” desktop_text_alignment=”default” tablet_text_alignment=”default” phone_text_alignment=”default” background_color_opacity=”1″ background_hover_color_opacity=”1″ column_backdrop_filter=”none” column_shadow=”none” column_border_radius=”none” column_link_target=”_self” column_position=”default” gradient_direction=”left_to_right” overlay_strength=”0.3″ width=”1/1″ tablet_width_inherit=”default” animation_type=”default” bg_image_animation=”none” border_type=”simple” column_border_width=”none” column_border_style=”solid”][split_line_heading animation_type=”line-reveal-by-space” font_style=”h2″ text_color=”#000000″ line_reveal_by_space_text_effect=”default” stagger_animation=”true” mobile_disable_animation=”true” content_alignment=”center” mobile_content_alignment=”inherit” link_target=”_self” text_content=”Other Ultrasound Tables” font_line_height=”1.3″][/split_line_heading][nectar_woo_products product_type=”all” category=”ultrasound-tables” columns=”4″ flickity_mobile_column_width=”100%” orderby=”date” order=”DESC” carousel=”1″ script=”flickity” flickity_wrap=”wrap” flickity_overflow=”hidden” flickity_controls=”bottom-pagination” flickity_group_cells=”default” flickity_item_animation=”none” autorotate=”true” autorotation_speed=”5000″][/vc_column][/vc_row]

Width

610mm (Standard), 660mm, 710mm, 760mm
