Dual-tone Audio Signalling
[/vc_column_text][image_with_animation image_url=”9938″ image_size=”full” animation_type=”entrance” animation=”None” animation_movement_type=”transform_y” hover_animation=”none” alignment=”” border_radius=”none” box_shadow=”none” image_loading=”default” max_width=”100%” max_width_mobile=”default”][/vc_column][vc_column column_padding=”no-extra-padding” column_padding_tablet=”inherit” column_padding_phone=”inherit” column_padding_position=”all” column_element_direction_desktop=”default” column_element_spacing=”default” desktop_text_alignment=”default” tablet_text_alignment=”default” phone_text_alignment=”default” background_color_opacity=”1″ background_hover_color_opacity=”1″ column_backdrop_filter=”none” column_shadow=”none” column_border_radius=”none” column_link_target=”_self” column_position=”default” gradient_direction=”left_to_right” overlay_strength=”0.3″ width=”1/3″ tablet_width_inherit=”default” animation_type=”default” bg_image_animation=”none” border_type=”simple” column_border_width=”none” column_border_style=”solid”][vc_column_text]
Dual-colour Display
[/vc_column_text][image_with_animation image_url=”9939″ image_size=”full” animation_type=”entrance” animation=”None” animation_movement_type=”transform_y” hover_animation=”none” alignment=”” border_radius=”none” box_shadow=”none” image_loading=”default” max_width=”100%” max_width_mobile=”default”][/vc_column][vc_column column_padding=”no-extra-padding” column_padding_tablet=”inherit” column_padding_phone=”inherit” column_padding_position=”all” column_element_direction_desktop=”default” column_element_spacing=”default” desktop_text_alignment=”default” tablet_text_alignment=”default” phone_text_alignment=”default” background_color_opacity=”1″ background_hover_color_opacity=”1″ column_backdrop_filter=”none” column_shadow=”none” column_border_radius=”none” column_link_target=”_self” column_position=”default” gradient_direction=”left_to_right” overlay_strength=”0.3″ width=”1/3″ tablet_width_inherit=”default” animation_type=”default” bg_image_animation=”none” border_type=”simple” column_border_width=”none” column_border_style=”solid”][vc_column_text]
Analysis Mode Selection
All Metals
- High sensitivity to all types of metals (implanted medical devices, prostheses, metal splinters)
Body
- High sensitivity to small ferromagnetic metals (ferromagnetic fragments, surgical instruments)
- Insensitive to large non-ferromagnetic implanted medical devices (large prostheses)
Head
- High sensitivity to very small ferromagnetic metals (small ferromagnetic fragments)
- Insensitive to medium size non-ferromagnetic implanted medical devices (non-ferromagnetic dental implants, small prostheses)
[/vc_column_text][/vc_column][/vc_row][vc_row type=”in_container” full_screen_row_position=”middle” column_margin=”default” column_direction=”default” column_direction_tablet=”default” column_direction_phone=”default” scene_position=”center” text_color=”dark” text_align=”left” row_border_radius=”none” row_border_radius_applies=”bg” overflow=”visible” overlay_strength=”0.3″ gradient_direction=”left_to_right” shape_divider_position=”bottom” bg_image_animation=”none”][vc_column column_padding=”no-extra-padding” column_padding_tablet=”inherit” column_padding_phone=”inherit” column_padding_position=”all” column_element_direction_desktop=”default” column_element_spacing=”default” desktop_text_alignment=”default” tablet_text_alignment=”default” phone_text_alignment=”default” background_color_opacity=”1″ background_hover_color_opacity=”1″ column_backdrop_filter=”none” column_shadow=”none” column_border_radius=”none” column_link_target=”_self” column_position=”default” gradient_direction=”left_to_right” overlay_strength=”0.3″ width=”1/3″ tablet_width_inherit=”default” animation_type=”default” bg_image_animation=”none” border_type=”simple” column_border_width=”none” column_border_style=”solid”][vc_column_text]
Power Supply
- PD240CH: 2 x AA size Ni-MH, 2500mAh rechargeable batteries
- HHDS-CH Docking Station: AC/DC adapter: 100-240V~, 50-60Hz, 200 mA
Control Panel
- Optical and acoustic signalling modes
- 3-Level Sensitivity selection
- ALL METALS (ferromagnetic and non-ferromagnetic metals)
- BODY (small ferromagnetic metals)
- HEAD (very small ferromagnetic metals)
Detection and Operational Functions
- Customizable via HHMD Configuration tool
Battery
- Battery life (AA NiMH batteries 2500mAh)
- ALL METALS > 50 hours
- FERROUS METAL BODY > 20 hours
- FERROUS METAL HEAD > 20 hours
- Low battery indicator
[/vc_column_text][/vc_column][vc_column column_padding=”no-extra-padding” column_padding_tablet=”inherit” column_padding_phone=”inherit” column_padding_position=”all” column_element_direction_desktop=”default” column_element_spacing=”default” desktop_text_alignment=”default” tablet_text_alignment=”default” phone_text_alignment=”default” background_color_opacity=”1″ background_hover_color_opacity=”1″ column_backdrop_filter=”none” column_shadow=”none” column_border_radius=”none” column_link_target=”_self” column_position=”default” gradient_direction=”left_to_right” overlay_strength=”0.3″ width=”1/3″ tablet_width_inherit=”default” animation_type=”default” bg_image_animation=”none” border_type=”simple” column_border_width=”none” column_border_style=”solid”][vc_column_text]
Operating temperature
- -40°C to +70°C
Storage temperature
- -40°C to +80°C
Relative humidity
- 0 to 98% (without condensation)
Dimensions
- PD240CH 405 mm x 120 mm x 40 mm
- HHDS-CH Docking Station 175 mm x 115 mm x 85 mm
- Carry Bag 430 mm x 340 mm x 105 mm
Weight
- PD240CH 460 g (with battery)
- HHDS-CH Docking Station 755 g (with power adapter)
- Carry Bag 2.85 kg (with equipment)
[/vc_column_text][/vc_column][vc_column column_padding=”no-extra-padding” column_padding_tablet=”inherit” column_padding_phone=”inherit” column_padding_position=”all” column_element_direction_desktop=”default” column_element_spacing=”default” desktop_text_alignment=”default” tablet_text_alignment=”default” phone_text_alignment=”default” background_color_opacity=”1″ background_hover_color_opacity=”1″ column_backdrop_filter=”none” column_shadow=”none” column_border_radius=”none” column_link_target=”_self” column_position=”default” gradient_direction=”left_to_right” overlay_strength=”0.3″ width=”1/3″ tablet_width_inherit=”default” animation_type=”default” bg_image_animation=”none” border_type=”simple” column_border_width=”none” column_border_style=”solid”][vc_column_text]
Compliance
- Conforms to the applicable international standards for safety, EMC and to the applicable CE regulations
Safety features
- Manufactured in shock-resistant technical polymers

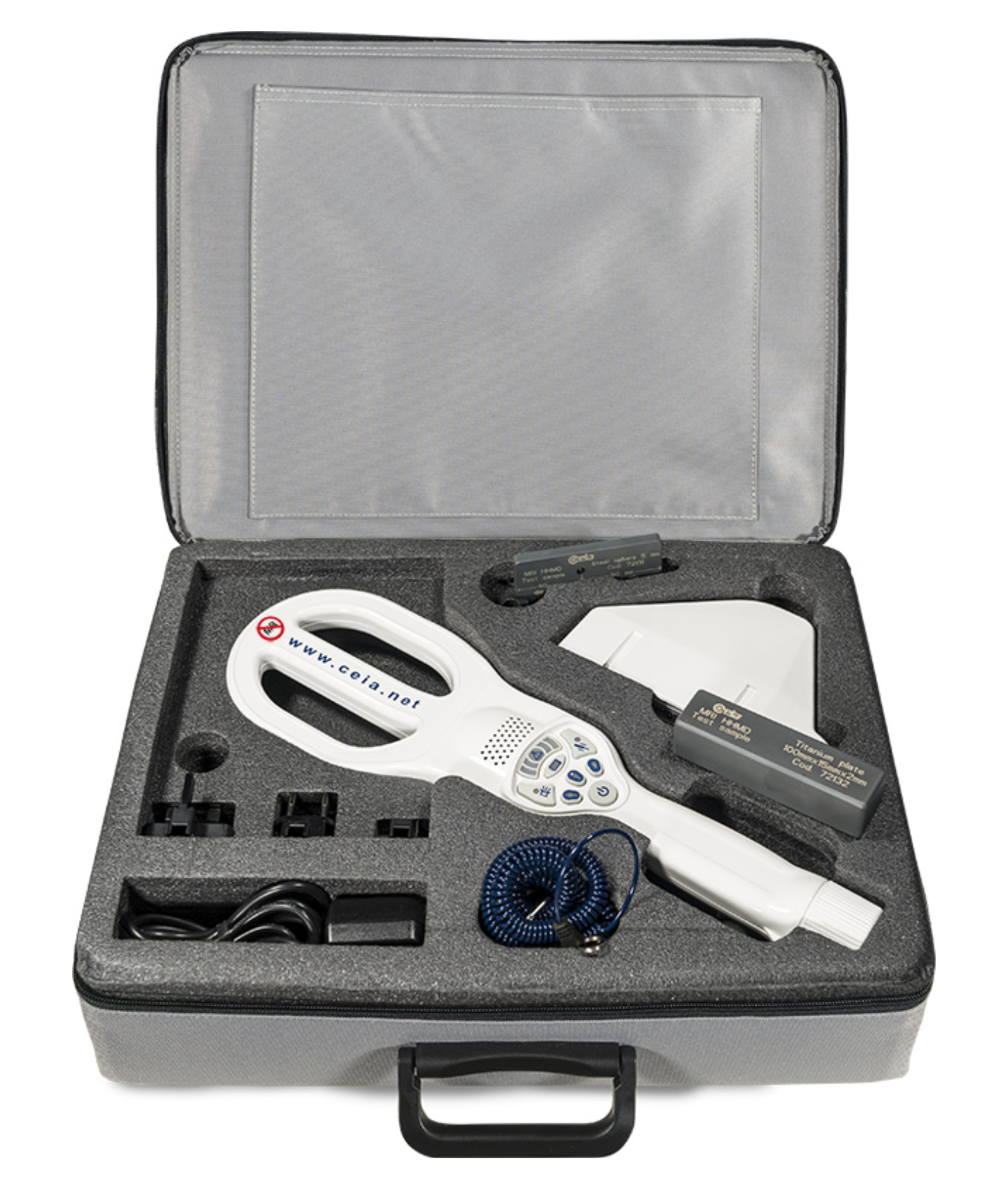

PD240CH detecting set
- Hand-held Patient Screener
- HHDS-CH desktop docking station
- Detection Verification (Test Piece: part # 72131)
- Discrimination Verification (Test Piece: part # 72132)
- Instruction manual / Certificate of Calibration
- Universal AC adapter
- US, EU, UK, JP plugs
- Extensible restraint cable
- Carry bag
Options / Accessories
- Patient screener configuration tool: setting up the Hand-held Patient Screener via USB PC-HHMD connecting cable and GUI application software: part # 63537
