PRODUCT ADVANTAGES

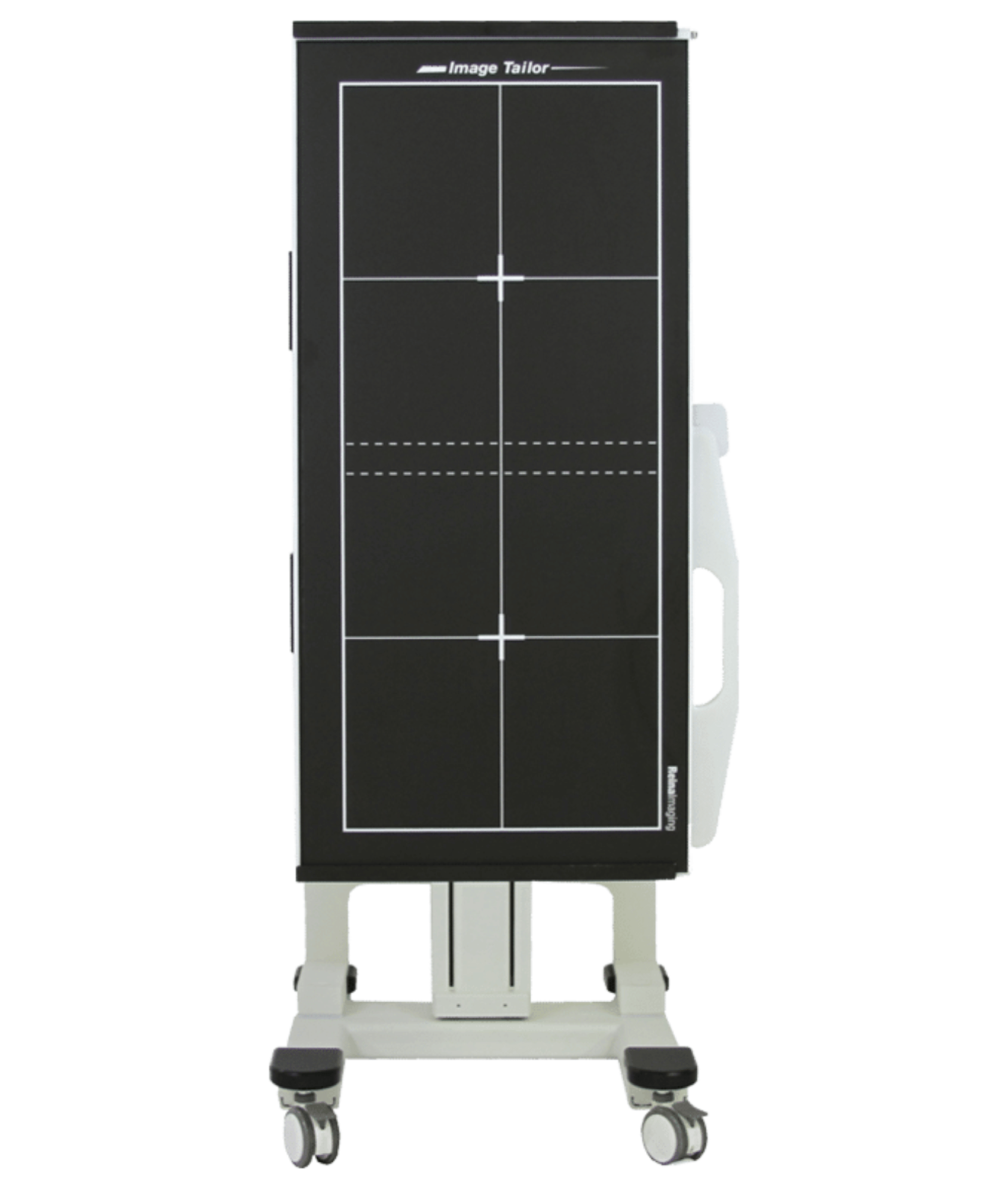

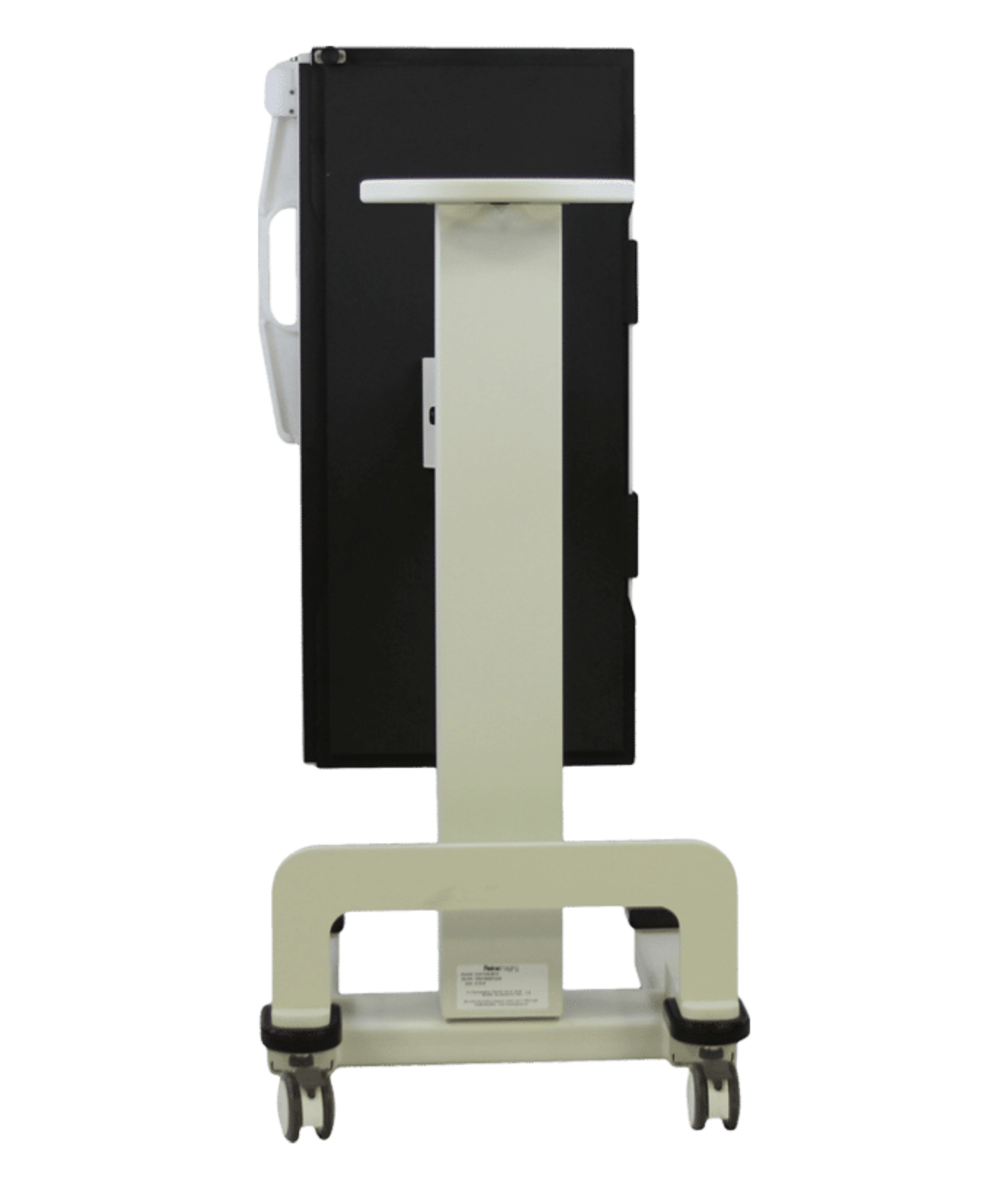

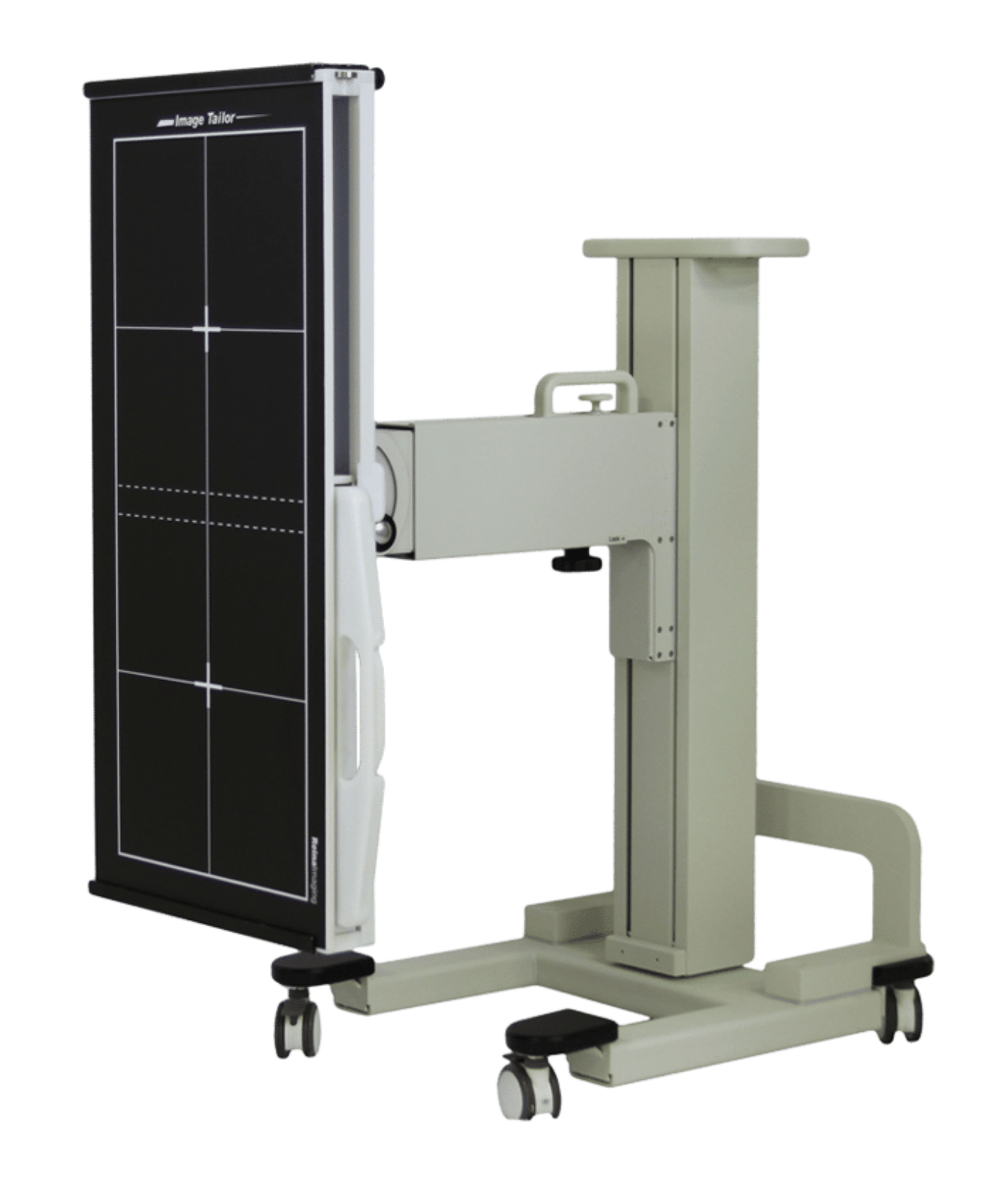

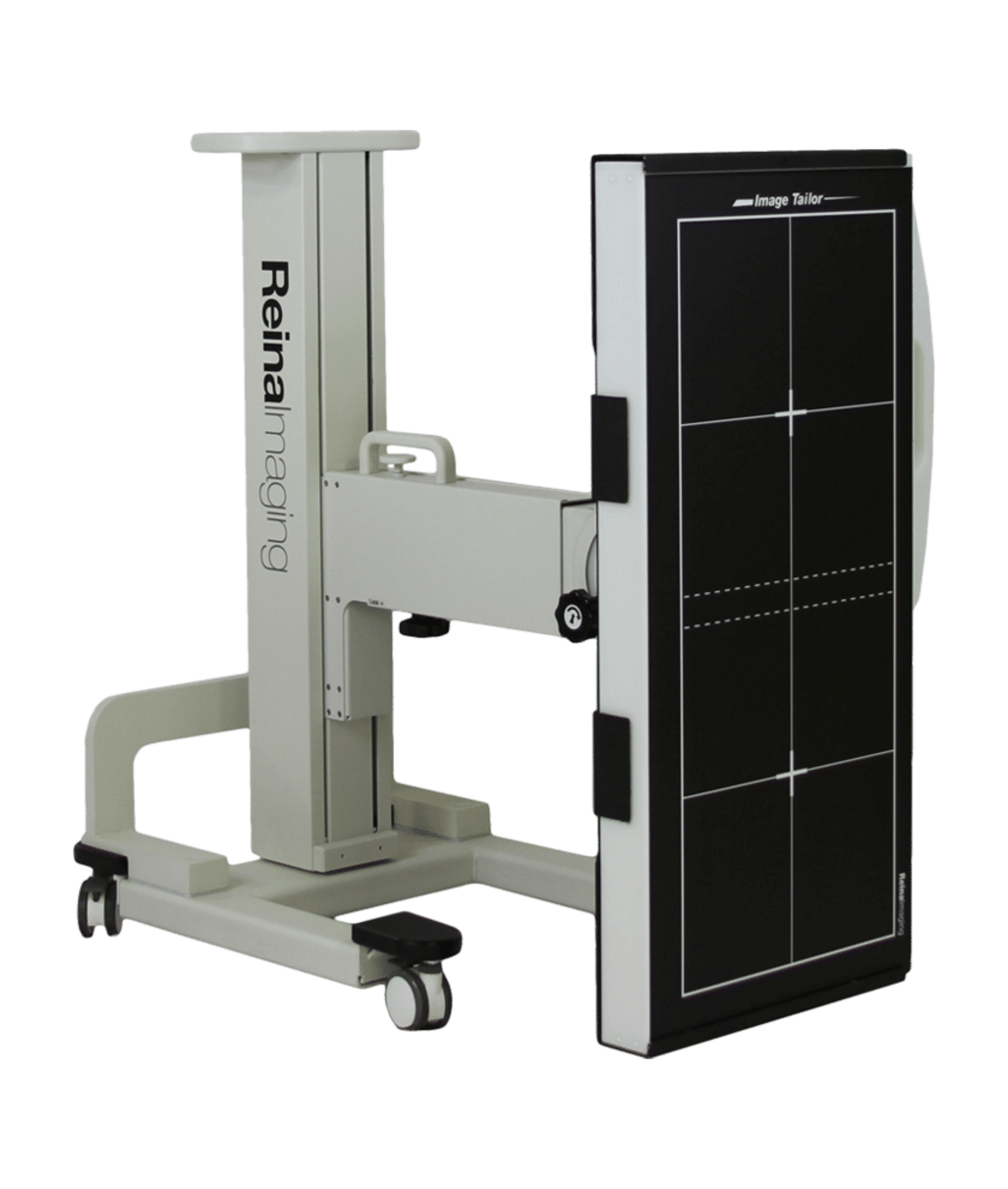

- Designed for precise fitment of your 14x17in. or 17x17in. image receptor
- Features an image receptor tray and built in detents to speed workflow and reduce patient hold times
- Factory configured overlap area and available embedded markers for every OEM panel and stitching software requirement
- Greatly improves total cost of ownership for single detector rooms
- Removable custom detector holder available with or without a grid allows the DR panel to be shared for portable imaging and free exposures without ever removing it from the holder
- Simple push-button mechanism engages the zero-gravity lift assist mechanism in the vertical position and disengages for the landscape and under-table positions
- Available with Reina Imaging’s sliding Easy Reader™ radiographic ruler
PRODUCT DIMENSIONS
- Overall: 30 x 23.25 x 40 in. (76.2 x 59 x 101.6 cm), Total Vertical Stroke: 44 in. (111.75 cm), Pneumatic Piston Vertical Stroke: 19 in. (48.25 cm), Horizontal Arm Vertical Stroke: 25 in. (63.5 cm), Horizontal Stroke (Telescoping Arm): 6 in. (15.25 cm), Max. Height Active Imaging Area – Portrait: 75.5 in. (191.77 cm), Min. Height Active Imaging Area – Portrait: 3 in. (7.5 cm), Max. Height Active Imaging Area – Landscape: 66.5 in. (168.91 cm), Min. Height Active Imaging Area – Landscape: 8.25 in. (20.955 cm), Max. Height Active Imaging Area – Undertable: 67.5 in. (171.5 cm), Min. Height Active Imaging Area – Undertable: 23.5 in. (60cm)
- Product Weight: 196 lbs (89kg)
[/vc_column_text][/vc_column][vc_column column_padding=”no-extra-padding” column_padding_tablet=”inherit” column_padding_phone=”inherit” column_padding_position=”all” column_element_direction_desktop=”default” column_element_spacing=”default” desktop_text_alignment=”default” tablet_text_alignment=”default” phone_text_alignment=”default” background_color_opacity=”1″ background_hover_color_opacity=”1″ column_backdrop_filter=”none” column_shadow=”none” column_border_radius=”none” column_link_target=”_self” column_position=”default” gradient_direction=”left_to_right” overlay_strength=”0.3″ width=”1/3″ tablet_width_inherit=”default” animation_type=”default” bg_image_animation=”none” border_type=”simple” column_border_width=”none” column_border_style=”solid”][vc_column_text]
SIMPLY SMART STITCHING
Stitching.
Imaging the full spine or hips to ankles can be a challenge. There are several issues that one has to consider such as process of care, patient safety, efficiencies, and outcomes. Whether you use a single shot long detector or multiple exposures with a 14×17 detector, we have a solution to help stitch your DR images effectively every time.
